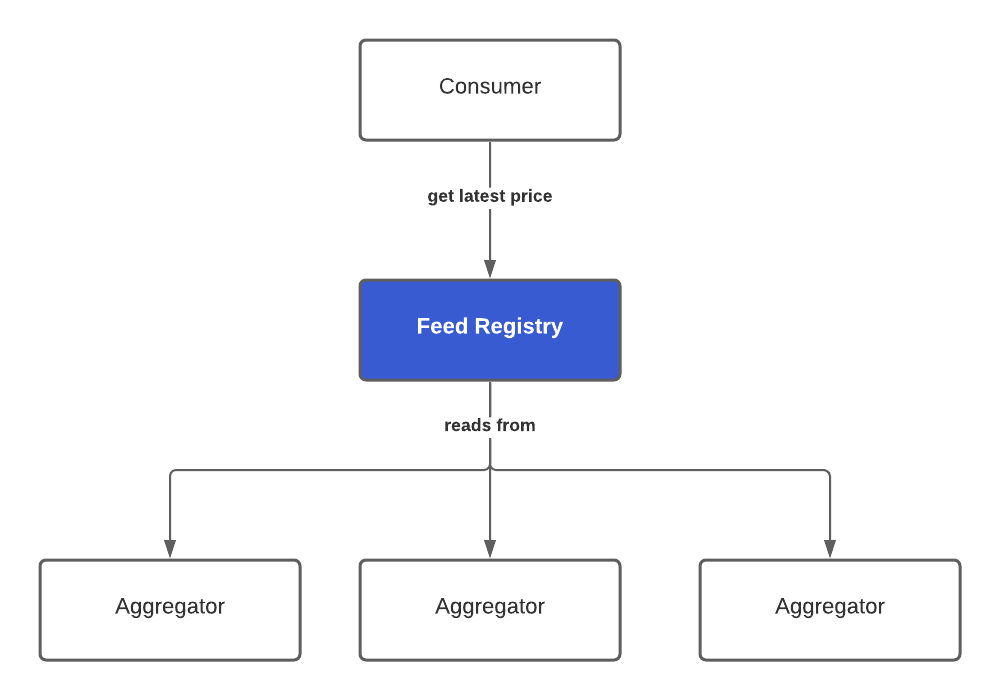

The Chainlink Feed Registry is an on-chain mapping of assets to feeds. It enables you to query Chainlink data feeds from asset addresses directly, without needing to know the feed contract addresses. They enable smart contracts to get the latest price of an asset in a single call, from a single contract.

Base and Quote

The Feed Registry fully supports the AggregatorV3Interface API for multiple feeds. It maps feeds from base and quote address pairs. To get the latest LINK / USD round data from the registry, call:

latestRoundData(address base, address quote)

For example, to get the latest LINK / USD price:

• base: The LINK token address on that network e.g. 0x514910771AF9Ca656af840dff83E8264EcF986CA for LINK on Ethereum mainnet
• quote: A Denominations.USD address (0x0000000000000000000000000000000000000348), which is based on ISO 4217.

latestRoundData(0x514910771AF9Ca656af840dff83E8264EcF986CA, 0x0000000000000000000000000000000000000348)

latestRoundData(0xa36085f69e2889c224210f603d836748e7dc0088, 0x0000000000000000000000000000000000000348)

To get the latest LINK / ETH price on Ethereum:

• base: The LINK token address on that network e.g. 0x514910771AF9Ca656af840dff83E8264EcF986CA for LINK on Ethereum mainnet
• quote: A Denominations.ETH address (0xEeeeeEeeeEeEeeEeEeEeeEEEeeeeEeeeeeeeEEeE)

latestRoundData(0x514910771AF9Ca656af840dff83E8264EcF986CA, 0xEeeeeEeeeEeEeeEeEeEeeEEEeeeeEeeeeeeeEEeE)

latestRoundData(0xa36085f69e2889c224210f603d836748e7dc0088, 0xEeeeeEeeeEeEeeEeEeEeeEEEeeeeEeeeeeeeEEeE)

Denominations library

A Denominations Solidity library is available for you to fetch currency identifiers which lack a canonical Ethereum address:

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.7;

library Denominations {
  address public constant ETH = 0xEeeeeEeeeEeEeeEeEeEeeEEEeeeeEeeeeeeeEEeE;
  address public constant BTC = 0xbBbBBBBbbBBBbbbBbbBbbbbBBbBbbbbBbBbbBBbB;

  // Fiat currencies follow https://en.wikipedia.org/wiki/ISO_4217
  address public constant USD = address(840);
  address public constant GBP = address(826);
  address public constant EUR = address(978);

  // ... other fiat currencies
}

Code Examples

Solidity

To consume price data from the Feed Registry, your smart contract should reference FeedRegistryInterface, which defines the external functions implemented by the Feed Registry.

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.7;

import "@chainlink/contracts/src/v0.8/interfaces/FeedRegistryInterface.sol";
import "@chainlink/contracts/src/v0.8/Denominations.sol";

contract PriceConsumer {
    FeedRegistryInterface internal registry;

    /**
     * Network: Ethereum Kovan
     * Feed Registry: 0xAa7F6f7f507457a1EE157fE97F6c7DB2BEec5cD0
     */
    constructor(address _registry) {
        registry = FeedRegistryInterface(_registry);
    }

    /**
     * Returns the ETH / USD price
     */
    function getEthUsdPrice() public view returns (int) {
        (
            uint80 roundID,
            int price,
            uint startedAt,
            uint timeStamp,
            uint80 answeredInRound
        ) = registry.latestRoundData(Denominations.ETH, Denominations.USD);
        return price;
    }

    /**
     * Returns the latest price
     */
    function getPrice(address base, address quote) public view returns (int) {
        (
            uint80 roundID,
            int price,
            uint startedAt,
            uint timeStamp,
            uint80 answeredInRound
        ) = registry.latestRoundData(base, quote);
        return price;
    }
}

Solidity Hardhat Example

Javascript

const web3 = new Web3("https://kovan.infura.io/v3/<infura_project_id>");
const feedRegistryInterfaceABI = [{"anonymous":false,"inputs":[{"indexed":true,"internalType":"address","name":"accessController","type":"address"},{"indexed":true,"internalType":"address","name":"sender","type":"address"}],"name":"AccessControllerSet","type":"event"},{"anonymous":false,"inputs":[{"indexed":true,"internalType":"address","name":"asset","type":"address"},{"indexed":true,"internalType":"address","name":"denomination","type":"address"},{"indexed":true,"internalType":"address","name":"latestAggregator","type":"address"},{"indexed":false,"internalType":"address","name":"previousAggregator","type":"address"},{"indexed":false,"internalType":"uint16","name":"nextPhaseId","type":"uint16"},{"indexed":false,"internalType":"address","name":"sender","type":"address"}],"name":"FeedConfirmed","type":"event"},{"anonymous":false,"inputs":[{"indexed":true,"internalType":"address","name":"asset","type":"address"},{"indexed":true,"internalType":"address","name":"denomination","type":"address"},{"indexed":true,"internalType":"address","name":"proposedAggregator","type":"address"},{"indexed":false,"internalType":"address","name":"currentAggregator","type":"address"},{"indexed":false,"internalType":"address","name":"sender","type":"address"}],"name":"FeedProposed","type":"event"},{"anonymous":false,"inputs":[{"indexed":true,"internalType":"address","name":"from","type":"address"},{"indexed":true,"internalType":"address","name":"to","type":"address"}],"name":"OwnershipTransferRequested","type":"event"},{"anonymous":false,"inputs":[{"indexed":true,"internalType":"address","name":"from","type":"address"},{"indexed":true,"internalType":"address","name":"to","type":"address"}],"name":"OwnershipTransferred","type":"event"},{"inputs":[],"name":"acceptOwnership","outputs":[],"stateMutability":"nonpayable","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"},{"internalType":"address","name":"aggregator","type":"address"}],"name":"confirmFeed","outputs":[],"stateMutability":"nonpayable","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"}],"name":"decimals","outputs":[{"internalType":"uint8","name":"","type":"uint8"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"}],"name":"description","outputs":[{"internalType":"string","name":"","type":"string"}],"stateMutability":"view","type":"function"},{"inputs":[],"name":"getAccessController","outputs":[{"internalType":"contract AccessControllerInterface","name":"","type":"address"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"},{"internalType":"uint256","name":"roundId","type":"uint256"}],"name":"getAnswer","outputs":[{"internalType":"int256","name":"answer","type":"int256"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"}],"name":"getCurrentPhaseId","outputs":[{"internalType":"uint16","name":"currentPhaseId","type":"uint16"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"}],"name":"getFeed","outputs":[{"internalType":"contract AggregatorV2V3Interface","name":"aggregator","type":"address"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"},{"internalType":"uint80","name":"roundId","type":"uint80"}],"name":"getNextRoundId","outputs":[{"internalType":"uint80","name":"nextRoundId","type":"uint80"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"},{"internalType":"uint16","name":"phaseId","type":"uint16"}],"name":"getPhase","outputs":[{"components":[{"internalType":"uint16","name":"phaseId","type":"uint16"},{"internalType":"uint80","name":"startingAggregatorRoundId","type":"uint80"},{"internalType":"uint80","name":"endingAggregatorRoundId","type":"uint80"}],"internalType":"struct FeedRegistryInterface.Phase","name":"phase","type":"tuple"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"},{"internalType":"uint16","name":"phaseId","type":"uint16"}],"name":"getPhaseFeed","outputs":[{"internalType":"contract AggregatorV2V3Interface","name":"aggregator","type":"address"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"},{"internalType":"uint16","name":"phaseId","type":"uint16"}],"name":"getPhaseRange","outputs":[{"internalType":"uint80","name":"startingRoundId","type":"uint80"},{"internalType":"uint80","name":"endingRoundId","type":"uint80"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"},{"internalType":"uint80","name":"roundId","type":"uint80"}],"name":"getPreviousRoundId","outputs":[{"internalType":"uint80","name":"previousRoundId","type":"uint80"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"}],"name":"getProposedFeed","outputs":[{"internalType":"contract AggregatorV2V3Interface","name":"proposedAggregator","type":"address"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"},{"internalType":"uint80","name":"_roundId","type":"uint80"}],"name":"getRoundData","outputs":[{"internalType":"uint80","name":"roundId","type":"uint80"},{"internalType":"int256","name":"answer","type":"int256"},{"internalType":"uint256","name":"startedAt","type":"uint256"},{"internalType":"uint256","name":"updatedAt","type":"uint256"},{"internalType":"uint80","name":"answeredInRound","type":"uint80"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"},{"internalType":"uint80","name":"roundId","type":"uint80"}],"name":"getRoundFeed","outputs":[{"internalType":"contract AggregatorV2V3Interface","name":"aggregator","type":"address"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"},{"internalType":"uint256","name":"roundId","type":"uint256"}],"name":"getTimestamp","outputs":[{"internalType":"uint256","name":"timestamp","type":"uint256"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"aggregator","type":"address"}],"name":"isFeedEnabled","outputs":[{"internalType":"bool","name":"","type":"bool"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"}],"name":"latestAnswer","outputs":[{"internalType":"int256","name":"answer","type":"int256"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"}],"name":"latestRound","outputs":[{"internalType":"uint256","name":"roundId","type":"uint256"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"}],"name":"latestRoundData","outputs":[{"internalType":"uint80","name":"roundId","type":"uint80"},{"internalType":"int256","name":"answer","type":"int256"},{"internalType":"uint256","name":"startedAt","type":"uint256"},{"internalType":"uint256","name":"updatedAt","type":"uint256"},{"internalType":"uint80","name":"answeredInRound","type":"uint80"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"}],"name":"latestTimestamp","outputs":[{"internalType":"uint256","name":"timestamp","type":"uint256"}],"stateMutability":"view","type":"function"},{"inputs":[],"name":"owner","outputs":[{"internalType":"address","name":"","type":"address"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"},{"internalType":"address","name":"aggregator","type":"address"}],"name":"proposeFeed","outputs":[],"stateMutability":"nonpayable","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"},{"internalType":"uint80","name":"roundId","type":"uint80"}],"name":"proposedGetRoundData","outputs":[{"internalType":"uint80","name":"id","type":"uint80"},{"internalType":"int256","name":"answer","type":"int256"},{"internalType":"uint256","name":"startedAt","type":"uint256"},{"internalType":"uint256","name":"updatedAt","type":"uint256"},{"internalType":"uint80","name":"answeredInRound","type":"uint80"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"}],"name":"proposedLatestRoundData","outputs":[{"internalType":"uint80","name":"id","type":"uint80"},{"internalType":"int256","name":"answer","type":"int256"},{"internalType":"uint256","name":"startedAt","type":"uint256"},{"internalType":"uint256","name":"updatedAt","type":"uint256"},{"internalType":"uint80","name":"answeredInRound","type":"uint80"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"contract AccessControllerInterface","name":"_accessController","type":"address"}],"name":"setAccessController","outputs":[],"stateMutability":"nonpayable","type":"function"},{"inputs":[{"internalType":"address","name":"to","type":"address"}],"name":"transferOwnership","outputs":[],"stateMutability":"nonpayable","type":"function"},{"inputs":[],"name":"typeAndVersion","outputs":[{"internalType":"string","name":"","type":"string"}],"stateMutability":"pure","type":"function"},{"inputs":[{"internalType":"address","name":"base","type":"address"},{"internalType":"address","name":"quote","type":"address"}],"name":"version","outputs":[{"internalType":"uint256","name":"","type":"uint256"}],"stateMutability":"view","type":"function"}]
const addr = "0xAa7F6f7f507457a1EE157fE97F6c7DB2BEec5cD0";
const feedRegistry = new web3.eth.Contract(feedRegistryInterfaceABI, addr);

const LINK = '0xa36085F69e2889c224210F603D836748e7dC0088';
const USD = '0x0000000000000000000000000000000000000348';
feedRegistry.methods.latestRoundData(LINK, USD).call()
    .then((roundData) => {
        // Do something with roundData
        console.log("Latest Round Data", roundData)
    });

Contract Addresses

This section lists the blockchains that Chainlink Feed Registry are currently available on.

API Reference

API reference for FeedRegistryInterface.

Functions

decimals

Get the number of decimals present in the response value.

function decimals(address base, address quote) external view returns (uint8)

Parameters

• base: The base asset address.
• quote: The quote asset address.

Return Values

• RETURN: The number of decimals.

description

Get the description of the underlying aggregator that the proxy points to.

function description(address base, address quote) external view returns (string memory)

Parameters

• base: The base asset address.
• quote: The quote asset address.

Return Values

• RETURN: The description of the underlying aggregator.

getRoundData

Get data about a specific round, using the roundId.

function getRoundData(address base, address quote, uint80 _roundId) external view
    returns (
        uint80 roundId,
        int256 answer,
        uint256 startedAt,
        uint256 updatedAt,
        uint80 answeredInRound
    )

Parameters

• base: The base asset address.
• quote: The quote asset address.
• roundId: The round ID.

Return Values

• roundId: The round ID.
• answer: The price.
• startedAt: Timestamp of when the round started.
• updatedAt: Timestamp of when the round was updated.
• answeredInRound: The round ID of the round in which the answer was computed.

latestRoundData

Get the price from the latest round.

function latestRoundData(address base, address quote) external view
    returns (
        uint80 roundId,
        int256 answer,
        uint256 startedAt,
        uint256 updatedAt,
        uint80 answeredInRound
    )

Return Values

• roundId: The round ID.
• answer: The price.
• startedAt: Timestamp of when the round started.
• updatedAt: Timestamp of when the round was updated.
• answeredInRound: The round ID of the round in which the answer was computed.

version

The version representing the type of aggregator the proxy points to.

function version(address base, address quote) external view returns (uint256)

Parameters

• base: The base asset address.
• quote: The quote asset address.

Return Values

• RETURN: The version number.

getFeed

Returns the primary aggregator address of a base / quote pair. Note that on-chain contracts cannot read from aggregators directly, only through Feed Registry or Proxy contracts.

function getFeed(
    address base,
    address quote
  )
    external
    view
    returns (
      AggregatorV2V3Interface aggregator
    );

Parameters

• base: The base asset address.
• quote: The quote asset address.

Return Values

• aggregator: The primary aggregator address.

getPhaseFeed

Returns the underlying aggregator address of a base / quote pair at a specified phase. Note that on-chain contracts cannot read from aggregators directly, only through Feed Registry or Proxy contracts.
Phase ids start at 1. You can get the current Phase by calling getCurrentPhaseId().

function getPhaseFeed(
    address base,
    address quote,
    uint16 phaseId
  )
    external
    view
    returns (
      AggregatorV2V3Interface aggregator
    );

Parameters

• base: The base asset address.
• quote: The quote asset address.
• phaseId: The phase id.

Return Values

• aggregator: The primary aggregator address at the specified phase.

isFeedEnabled

Returns true if an aggregator is enabled as primary on the feed registry. This is useful to check if you should index events from an aggregator contract, because you want to only index events of primary aggregators.

function isFeedEnabled(
    address aggregator
  )
    external
    view
    returns (
      bool
    );

Parameters

• aggregator: The aggregator address

Return Values

• RETURN: true if the supplied aggregator is a primary aggregator for any base / quote pair.

getPhase

Returns the starting and ending aggregator round ids of a base / quote pair.

function getPhase(
    address base,
    address quote,
    uint16 phaseId
  )
    external
    view
    returns (
      Phase memory phase
    );

Phases hold the following information:

struct Phase {
    uint16 phaseId;
    uint80 startingAggregatorRoundId;
    uint80 endingAggregatorRoundId;
}

Parameters

• base: The base asset address.
• quote: The quote asset address.
• phaseId: The phase id.

Return Values

• RETURN: Phase details of a base / quote pair.

getRoundFeed

Returns the underlying aggregator address of a base / quote pair at a specified round. Note that on-chain contracts cannot read from aggregators directly, only through Feed Registry or Proxy contracts.

  function getRoundFeed(
    address base,
    address quote,
    uint80 roundId
  )
    external
    view
    returns (
      AggregatorV2V3Interface aggregator
    );

Parameters

• base: The base asset address.
• quote: The quote asset address.
• roundId: The round id.

Return Values

• aggregator: The underlying aggregator address of a base / quote pair at the specified round.

getPhaseRange

Returns the starting and ending round ids of a base / quote pair at a specified phase.

Please note that this roundId is calculated from the phase id and the underlying aggregator's round id. To get the raw aggregator round ids of a phase for indexing purposes, please use getPhase().

  function getPhaseRange(
    address base,
    address quote,
    uint16 phaseId
  )
    external
    view
    returns (
      uint80 startingRoundId,
      uint80 endingRoundId
    );

Parameters

• base: The base asset address.
• quote: The quote asset address.
• phaseId: The phase id.

Return Values

• startingRoundId: The starting round id
• endingRoundId: The ending round id

getPreviousRoundId

Returns the previous round id of a base / quote pair given a specified round. Note that rounds are non-monotonic across phases.

  function getPreviousRoundId(
    address base,
    address quote,
    uint80 roundId
  ) external
    view
    returns (
      uint80 previousRoundId
    );

Parameters

• base: The base asset address.
• quote: The quote asset address.
• roundId: The round id.

Return Values

• previousRoundId: The previous round id of a base / quote pair.

getNextRoundId

Returns the next round id of a base / quote pair given a specified round. Note that rounds are non-monotonic across phases.

  function getNextRoundId(
    address base,
    address quote,
    uint80 roundId
  ) external
    view
    returns (
      uint80 nextRoundId
    );

Parameters

• base: The base asset address.
• quote: The quote asset address.
• roundId: The round id.

Return Values

• nextRoundId: The next round id of a base / quote pair.

getCurrentPhaseId

Returns the current phase id of a base / quote pair.

function getCurrentPhaseId(
  address base,
  address quote
)
  external
  view
  returns (
    uint16 currentPhaseId
  );

Parameters

• base: The base asset address.
• quote: The quote asset address.

Return Values

• phaseId: The current phase id of a base / quote pair.
